Code Structure

Open a new FRC VS Code window and press Ctrl+Shift+P. Select WPILib: Create a New Project, then use these options:

Project type: Template
Language: Java
Project base: Command Robot

Base folder: choose where to save the project
Project name: enter a descriptive name

Team number: 1114 (replace this with your team number)

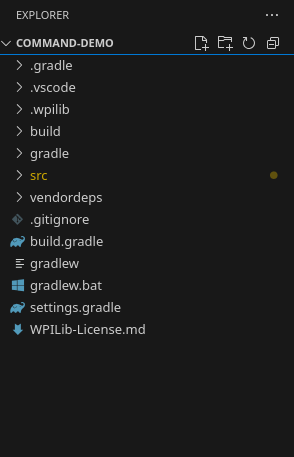

After WPILib generates the project, its files appear in the VS Code File Explorer:

Here is the full view:

project-name/
├── .gradle/
├── .vscode/
├── .wpilib/
├── build/
├── gradle/
├── src/
│   └── main/
│       ├── deploy/
│       └── java/
│           └── frc/
│               └── robot/
│                   ├── Main.java
│                   ├── Robot.java
│                   ├── RobotContainer.java
│                   ├── Constants.java
│                   ├── commands/
│                   └── subsystems/
├── vendordeps/
├── .gitignore
├── build.gradle
├── gradlew
├── gradlew.bat
├── settings.gradle
└── WPILib-License.md

The project may look complicated at first. For now, focus on src/main/java/frc/robot, which contains Main.java, Robot.java, RobotContainer.java, and Constants.java, along with the commands/ and subsystems/ folders.

Main.java

This is the entry point of your robot code. Robot::new is a constructor reference that works the same way as:

RobotBase.startRobot(() -> new Robot());

Main.java

You generally do not need to edit Main.java.

Robot.java

This file defines what the robot does during each mode and constructs RobotContainer.

In a command-based robot, the command scheduler must run periodically—normally every 20 ms—to manage commands and subsystem methods:

@Override
  public void robotPeriodic() {
    // Runs the Scheduler.  This is responsible for polling buttons, adding newly-scheduled
    // commands, running already-scheduled commands, removing finished or interrupted commands,
    // and running subsystem periodic() methods.  This must be called from the robot's periodic
    // block in order for anything in the Command-based framework to work.
    CommandScheduler.getInstance().run();
  }

When autonomous mode begins, the robot schedules the autonomous command selected through RobotContainer:

@Override
  public void autonomousInit() {
    m_autonomousCommand = m_robotContainer.getAutonomousCommand();

    // schedule the autonomous command (example)
    if (m_autonomousCommand != null) {
      CommandScheduler.getInstance().schedule(m_autonomousCommand);
    }
  }

RobotContainer.java

The robot's subsystems, commands, and controller bindings should be declared here:

private final IntakeSubsystem intake = new IntakeSubsystem();

...

private void configureBindings() {
  // Run the intake command while the Xbox controller's A button is held.
  m_driverController.a().whileTrue(new IntakeCommand(intake));
}

onTrue and whileTrue

Use onTrue for an action that should start once when a button is pressed. Use whileTrue for an action that should run only while a button is held. In this example, releasing the A button cancels IntakeCommand, so its end() method stops the motor.

Constants.java

If you need a refresher, see Variables vs. Constants.

The Constants.java class stores shared values such as controller ports and current limits. In the template project, one example is kDriverControllerPort.

Subsystems

The subsystems/ folder contains code for robot mechanisms such as the drivetrain, intake, arm, or elevator. A subsystem manages its motors, sensors, and basic actions. See the Subsystems page for more details.

Commands

The commands/ folder contains commands that tell one or more subsystems what actions to perform. For example, a command could move an elevator to a set height or run an intake until it detects a game piece. See the Commands page for more details.

Other files

• .gradle/ stores Gradle's local cache and project data. You normally do not edit it.
• .vscode/ contains VS Code settings for the project.
• .wpilib/ stores WPILib project settings and version information.
• build/ contains files generated when the robot code is compiled. It can be recreated automatically.
• gradle/ contains the Gradle Wrapper files used to build the project with the correct Gradle version.
• src/main/deploy/ contains files that should be copied to the roboRIO, such as PathPlanner paths, AprilTag layouts, and configuration files.
• vendordeps/ contains JSON files for third-party libraries, such as REVLib, Phoenix, or PathPlanner.
• .gitignore tells Git which generated or local files should not be committed.
• build.gradle defines how the robot project is built, tested, and deployed.
• gradlew runs Gradle on macOS or Linux without requiring a separate Gradle installation.
• gradlew.bat is the Windows version of gradlew.
• settings.gradle contains basic Gradle project settings, including the project name.
• WPILib-License.md contains the license information for the WPILib project template.
